AZ Press Co 5 x 5 Press Kit
These are build to order, once your order is placed you can expect a 2-3 business day build and test period before the kits ship out.
MADE IN ARIZONA
• Designed to bolt directly up to hydraulic or pneumatic rams that are no larger than 2 inches in diameter and can handle up to 20 tons of pressure. This kit is best designed for a 20 ton h frame.
• You will need to purchase one of the below separately to mount your kit to.
- A Frames (6 ton)
- H Frames (10 or 20 ton)
- Arbor Presses (Fits Harbor Freight 1 ton arbor press).

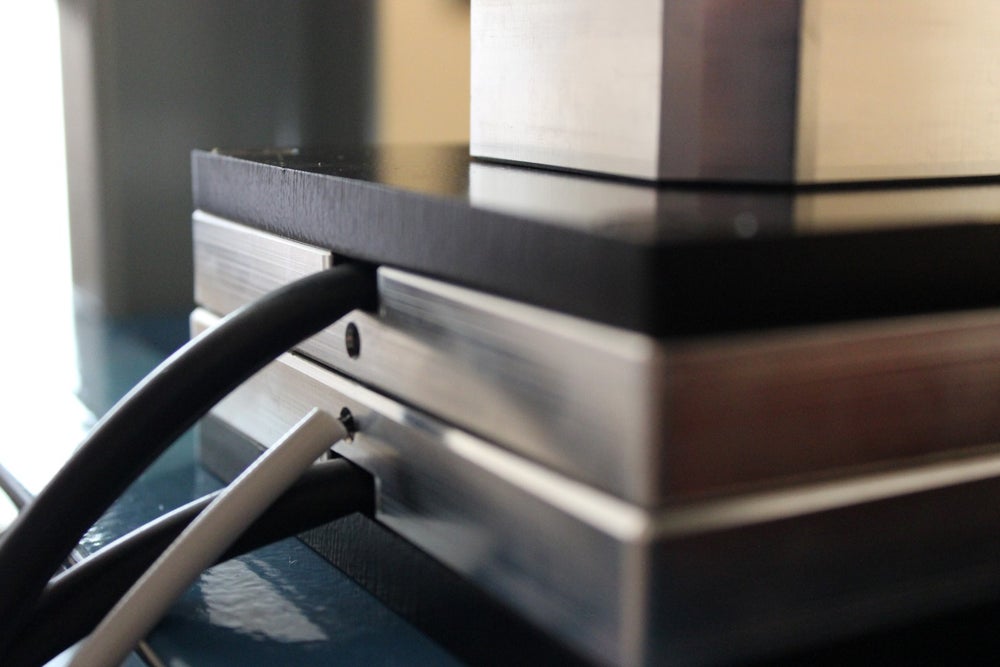

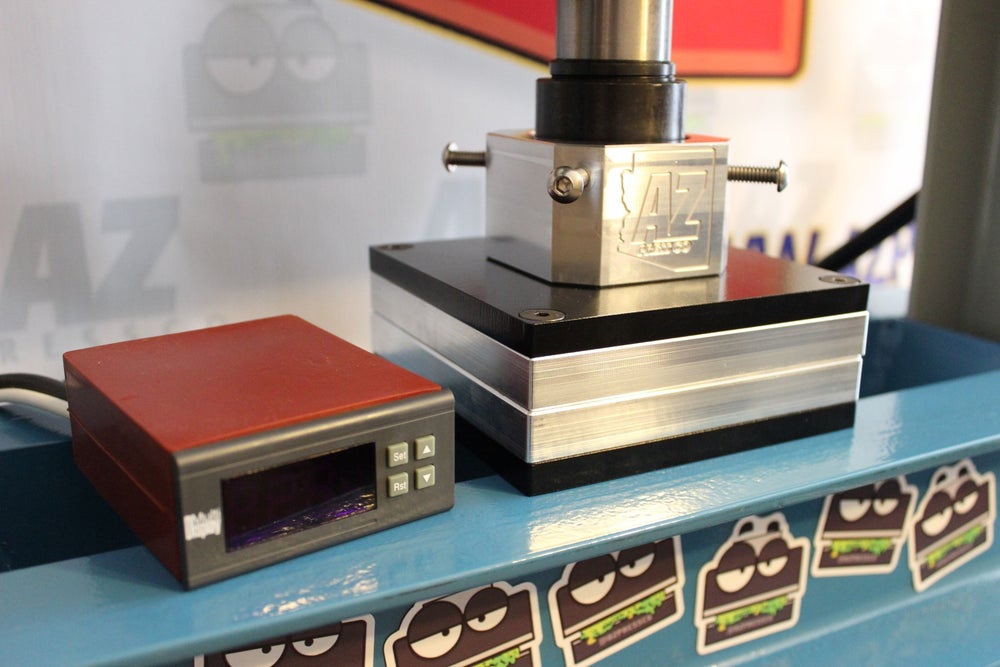

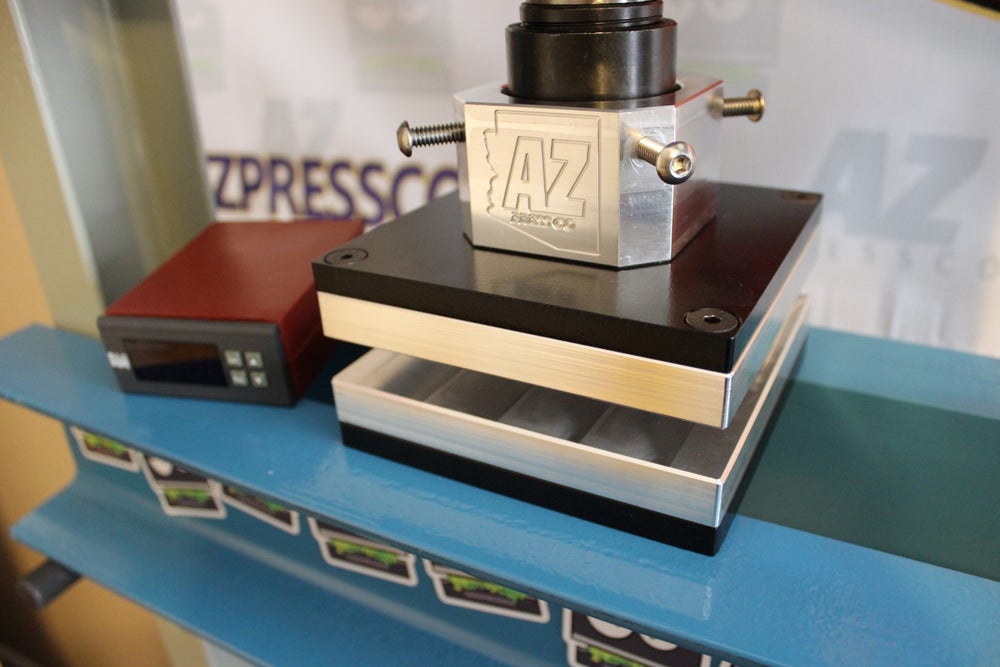

• 4.95 x 4.95 x 1/2 top and bottom 6061 aluminum platens individually heated with 180 watts heaters. These platens will reach 200 degrees F in about 15 mins.
• Aluminum platens secured by high temp black powder coated A31 steel mounting plates for extreme durability.
• Digital temperature controller to dial in your preferred temps in Fahrenheit or Celsius. Bottom platen securely houses the thermal temperature sensor.

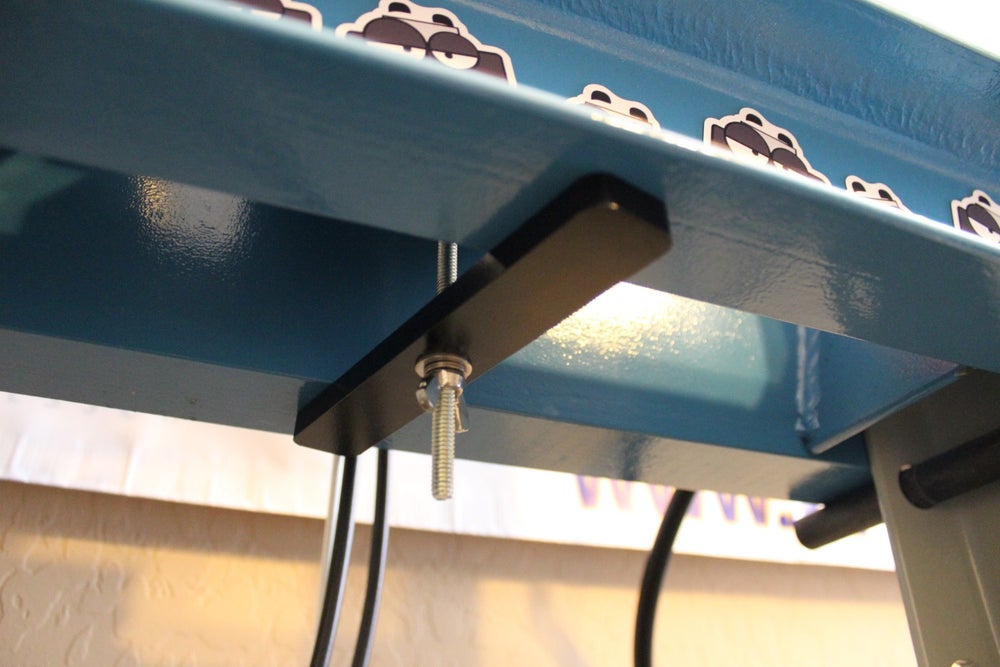

• Bottom platen securely mounts to your H and A frames (does not secure to Arbor press). These will not move or shift on you in the pressing process making this kit very safe.

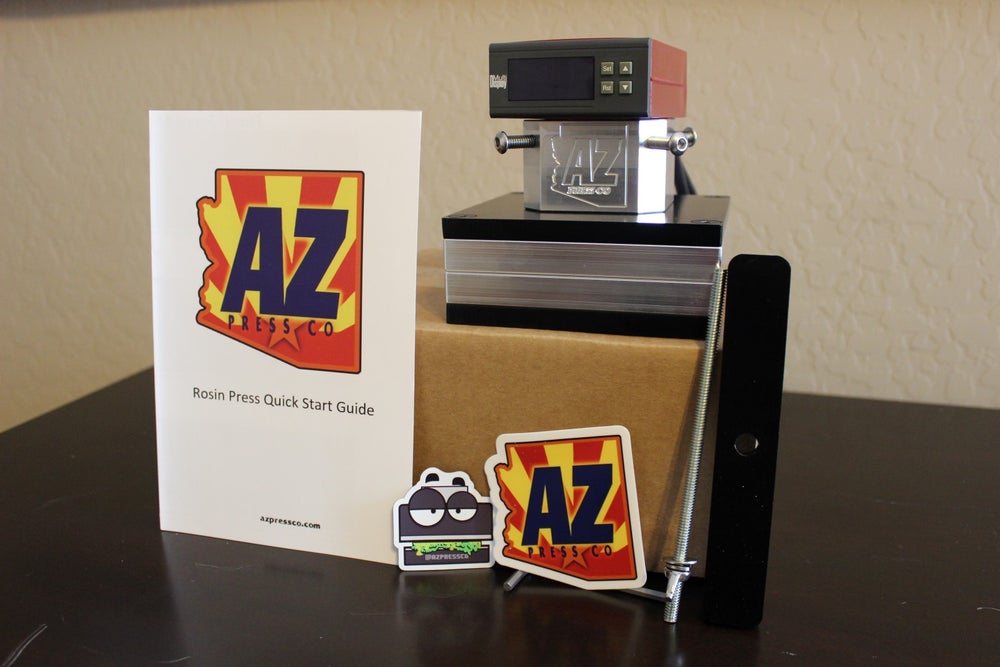

• Kit includes platens, temperature controller, frame securing mount, quick start guide, hex key, and logo slap.
• We back our entire product with a 60 day warranty. Warranty excludes cosmetic issues caused by usage.
